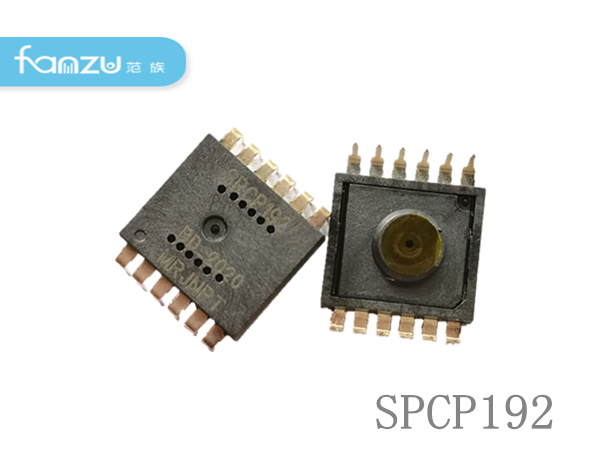

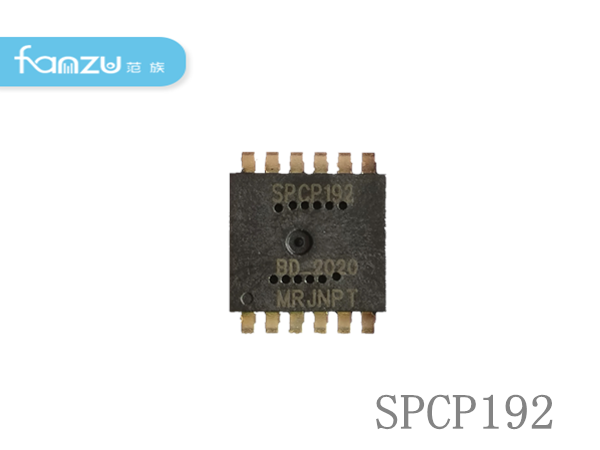

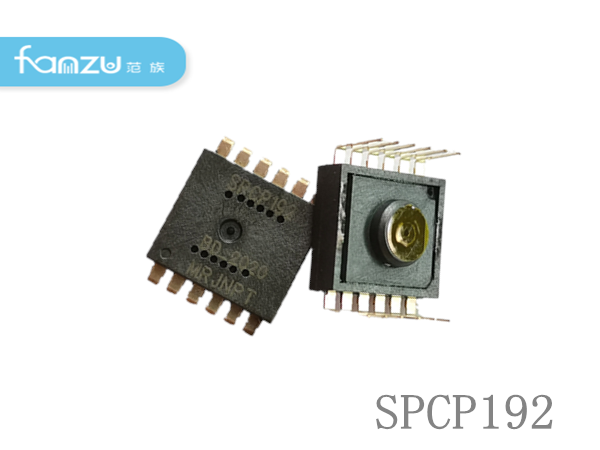

SPCP192/193/195/199B is a new product recently launched by Sunplus. While improving the sensor performance, it focuses on solving the problem of simultaneous breathing/controlling of LEDs without the need for an external MCU. It integrates the current major solutions in the market and the lighting effects are integrated. With the always-on option, the number of DPI switching times flashes!
Few external components make customer's cost cheaper, production more convenient, and products more competitive! The four models have the same performance parameters and can be designed in the same board. The difference is the LED effect matching and the difference in macro definition types! (192/193 with soft macro, 199B with hard macro)
basic skills:

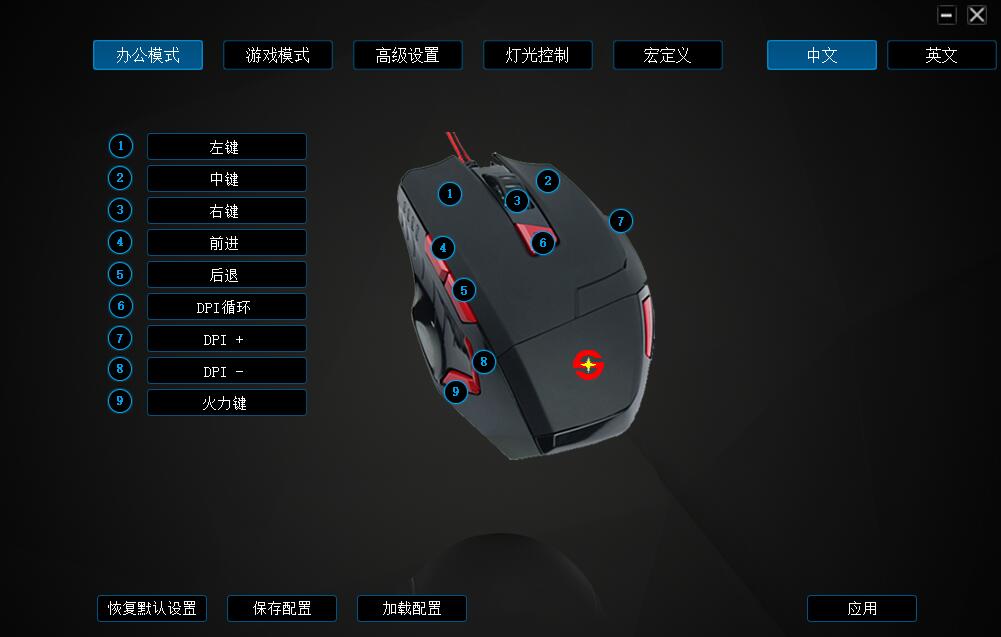

1) Support 9 keys 2) Report rate 125Hz, 3) Frame rate 4000 frames/sec
4) Acceleration 12g 5) Maximum speed up to 32 inches per second 6) DPI up to 6400
4 levels {1000,1600*,3200,6400 };

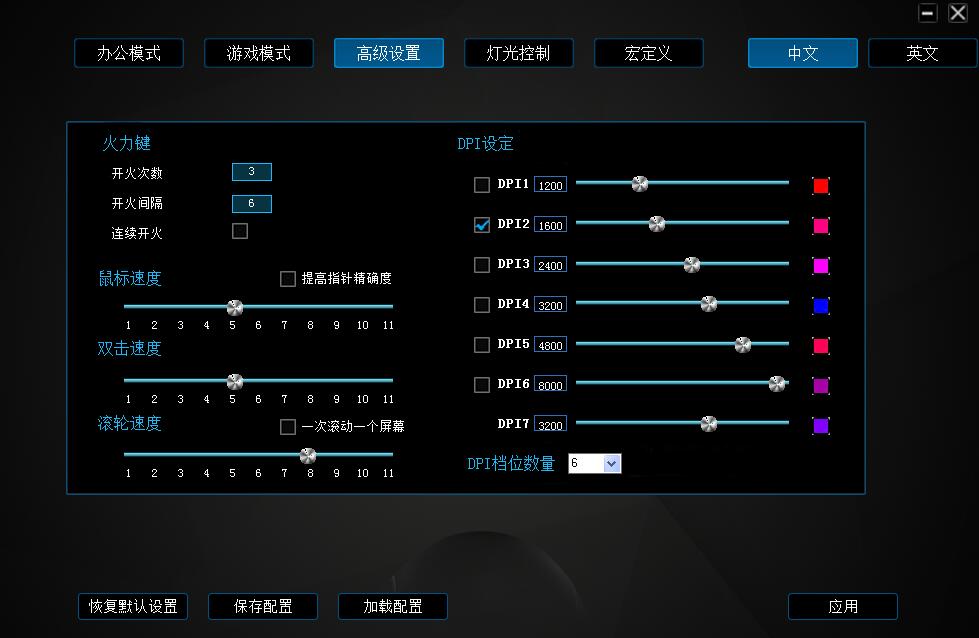

6 levels of DPI can be set via AP; the measured value can reach up to 8000DPI
(500-800-1000-1200-1600-2000-2400-3200-4000-4800-6400-8000 optional)
SPCP192:
RB red and blue double color lamp 6+1 kinds of lighting effects
1. Color change and breathe quickly
2. Color change and breathe
3. Color change and breathe slowly
4. CPI color breathe quickly
5. CPI color breathing
6. CPI color is always bright
7 turn off the lights
Turn on/off the light:
  Middle button+CPI
  Middle button + (CPI+)
Switch light mode:
  Left button + CPI
  Left button +) CPI-)
